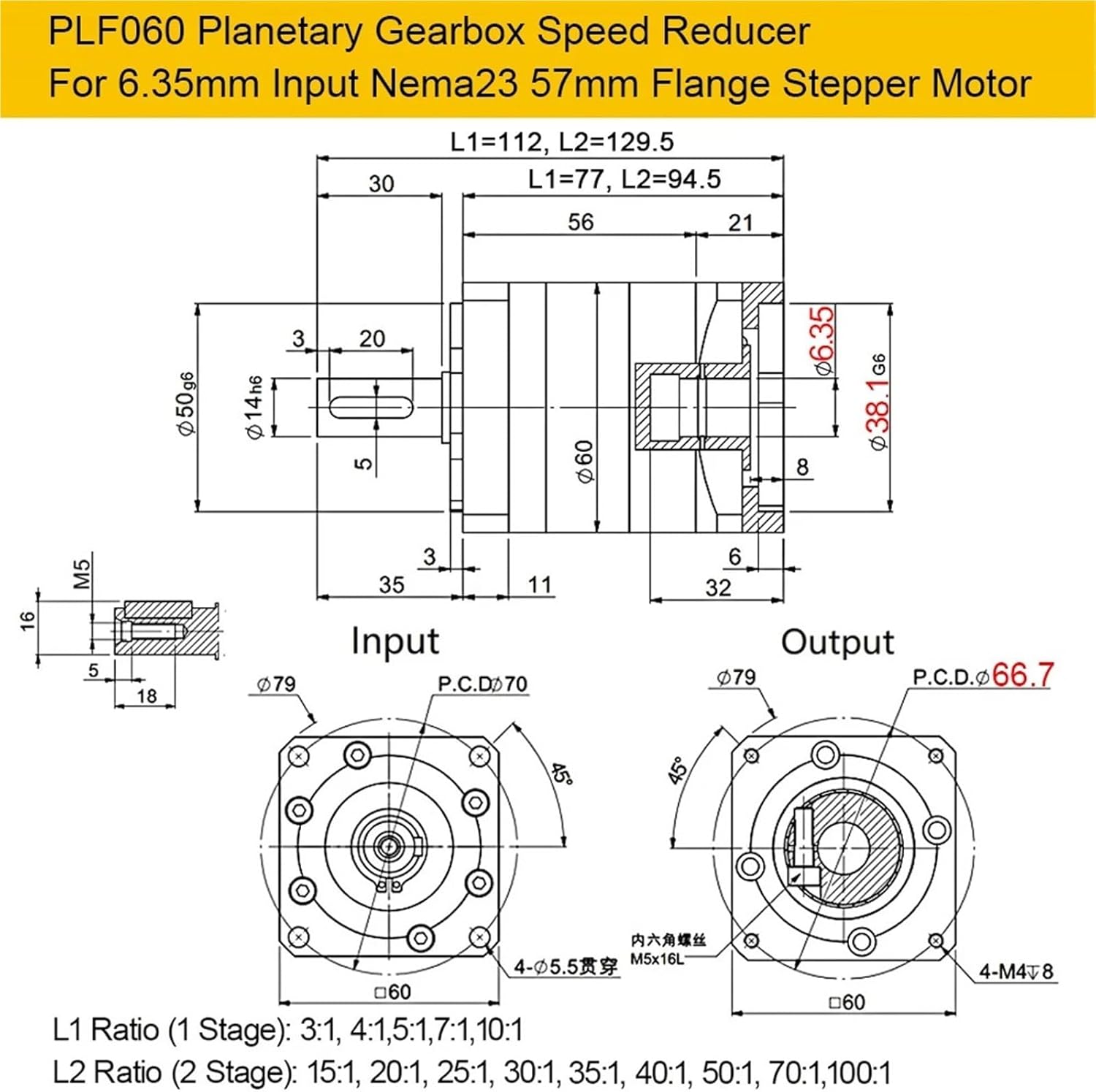

Nema 23 Motor Gearbox Planetary Reducer Step-Down Reduction Gearbox 6.35 8 9.525 11 14mm Input for 200W 400W 60mm Servo Motor(Ratio 70 to 1,11mm Input)
Product details
| Management number | 211319187 | Release Date | 2026/04/04 | List Price | $233.08 | Model Number | 211319187 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Gearboxes, Gearheads & Speed Reducers1Pcs x Planetary Reducer ( Straight Gear Transmission )1Pcs x Key4Pcs x Install Screws(Noted:If planetary gearbox needs to be , please free to contact us first.)Speed Ratio: 1Stage (L1): 3:1 / 4:1 / 5:1 / 7:1 / 10:1 2Stage (L2): 15:1 / 20:1 / 25:1 / 30:1 / 35:1 / 40:1 / 50:1 / 70:1 / 100:1 Maximum Tq: 1.5* Rated TqEmergency braking Tq: 2.5* Rated TqBacklash Precision: L1 7 Arcmin , L2 12 Arcmin Torsion rigidity: 1.8Nm/arcminNoise: less than 58dB
- Gearboxes, Gearheads & Speed Reducers
- Nema 23 Motor Gearbox Planetary Reducer Step-down Reduction Gearbox 6.35 8 9.525 11 14mm Input for 200W 400W 60mm Servo Motor
| Model | VKvmNYlxx |
|---|---|
| Brand Name | VKvmNYlxx |
| Model Name | VKvmNYlxx |
| Manufacturer | VKvmNYlxx |
