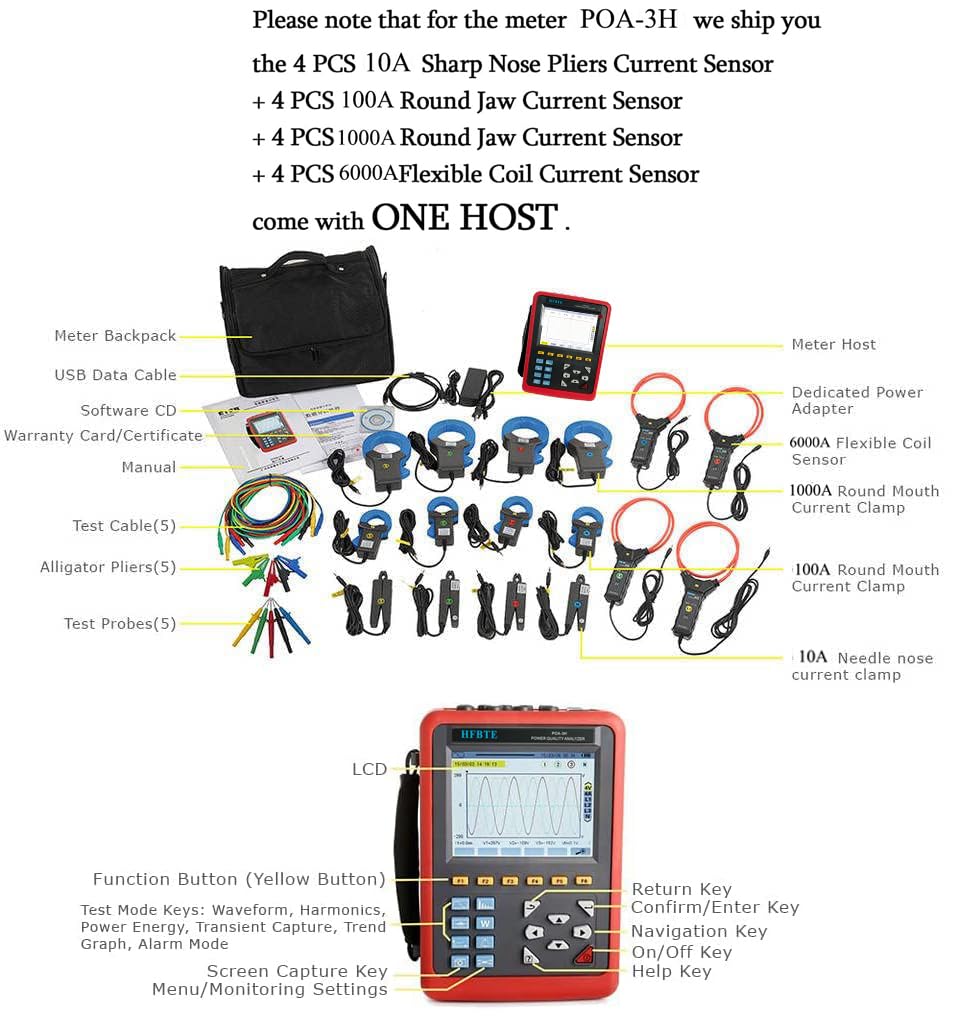

3 Phase Energy Power Quality Analyzer Logger Tester for Measuring AC with Current True RMS 10mA to 6000A Four Groups Current Sensor 10A+100A+1000A+6000A Full Set CT Size Ф8mm+Ф40mm+Ф68mm+Ф300mm
$3,500.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by mmcosmetics.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$3,500.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by mmcosmetics.com
Free 30-day returns Details
Product details
| Management number | 211723284 | Release Date | 2026/04/04 | List Price | $1,400.00 | Model Number | 211723284 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- (1)POA-3H Power Quality Analyzer is a comprehensive test instrument,designed for field test of three phases, multi-functional and intelligent, concise man-machine operation. It is easy to use, large LCD screen display, high resolution, interface in both Chinese and English, shock-proof shell structure and so on.
- (2)Can simultaneously measure the 4-channel current (ABC three phase and neutral wire current), 4-channel voltage (ABC three-phase voltage and neutral line voltage to ground), the peak value of current voltage, maximum/minimum value over a period, three-phase imbalance factor, short-time voltage flicker, transformer K factor, active power, reactive power, apparent power, power factor and displacement power factor, active power, reactive power, apparent power, etc;
- (3)POA-3H Power quality analyzer adopt DSP + ARM double processor architecture, DSP is use for data collection and the processing of algorithm, the ARM is use for the communication protocol and the man-machine interface processing; Analog signal acquisition is by 2 pieces AD7655 of ADI company.
- (4)Using a 5.6 -inch LCD color screen display, a resolution of 640 dots x 480 dots, with different display color difference between the parameters of phase, waveform, vector diagram, harmonic ratio, the user can be more efficient and more intuitive understand the state of power grid parameters.
- (5)Built-in flash memory can store 60 group of screenshots at the same time, 150 groups of capture transient voltage/current waveform figure, and 12800 groups of alarm list. Starting current detection model can continuously capture starting current waveform for 100 s. Built-in 2G memory card to store the trend curve record, simultaneous recording 20 parameters (can choose according to need) collect data for once every five seconds, trend curve records can be stored for 300 days.
