15170-001 LED Indicator Integrated Tactile Trim Tab Switch Kit with 36" Pigtail – Compatible Replacement for Lenco Marine Single Actuator Trim Tab Systems – Backlit Keypad, Auto-Retract

15170-001 LED Indicator Integrated Tactile Switch Kit w/ Pigtail f/ Single Actuator System 15170-001 LED Indicator Integrated Tactile Switch technology improves accuracy and integrates the control box functionality into the key pad bezel. LED indicator lights let you know exactly where your trim tabs are at all times. Backlit keypad automatically illuminates graphics for night viewing. Photo eye reads ambient light and adjusts the indicator intensity for optimum viewing in all lighting conditions. Special Features: Instant response , Built-in retractor Low profile key pad design Self-contained key pad with waterproof Plug & Play Deutsch connectors Wiring harness length: 30" (76.2 cm) from the back of the switch bezel, 36" power pigtail 2 1/16" hole cut-out size, overall key pad size of 2.75" x 2.75" 4.08" clearance required from the back of the key pad's mounting location 2 high-intensity LED Indicator displays show the exact position of your trim tabs at all times Photo Eye for optimum viewing in all light conditions Backlit key pad for optimum viewing at night Simple, quick, Plug & Play installation. 1. At the helm, determine where the tactile key pad will be installed, locate the supplied switch template, and secure to helm. Cut a circular opening using a 2 1/16” (5.24 cm) hole saw (Hole must be 2 1/16”). Before cutting, make sure the area inside the helm is clear of wires and other equipment that could be damaged. 2. Place the key pad & wiring into 2 1/16” hole, feed wires through bezel nut and hand tighten the key pads bezel nut onto the backside of helm. 3. Each switch kit has a retractor wire (orange) that must be connected to an on/off power source. The tabs retract to the up position when power, or analog signal is removed, and then shuts the system down into stand-by mode. Orange Wire Connection Options Connect to Key switch or ON/OFF power source. Do not install the orange wire and main power on the same mechanical switch.

• 【Compatible with Single Actuator Systems】 Direct replacement for Lenco Marine 15170-001 trim tab switch kit. Works with standard and HD single actuator systems. Ideal for upgrading or replacing existing switch kits on your boat's trim tabs.
• 【Real-Time LED Position Feedback】 Features dual high-brightness LED indicators that clearly display trim tab positions. Integrated control box ensures precise, responsive adjustments for optimal performance and handling on the water.

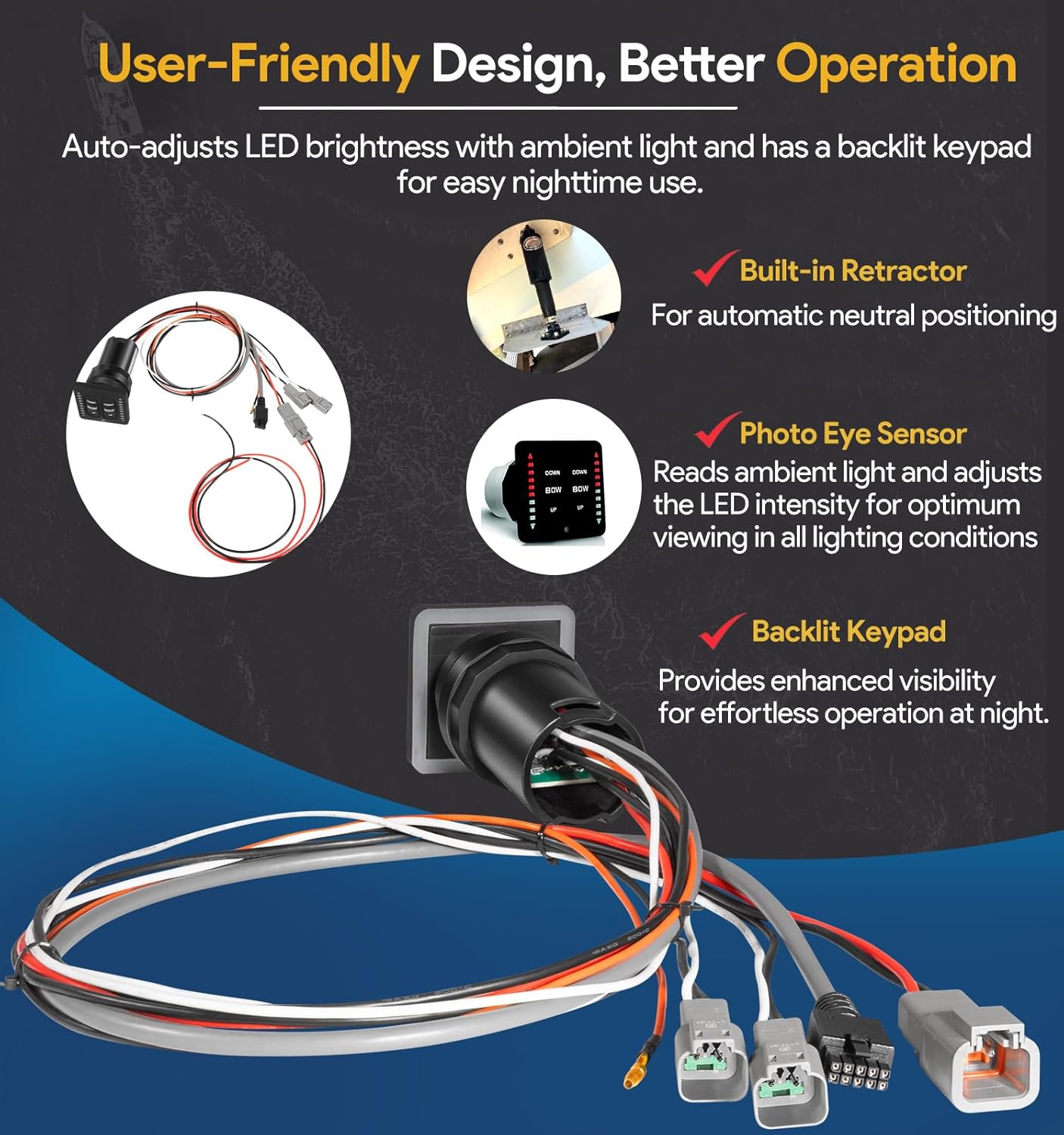

• 【Auto-Retract & Light-Sensing LED Brightness】 Built-in retract feature returns tabs to the neutral position when the engine turns off. Ambient light sensor automatically adjusts LED brightness for clear visibility day or night. Backlit keypad offers enhanced nighttime usability.

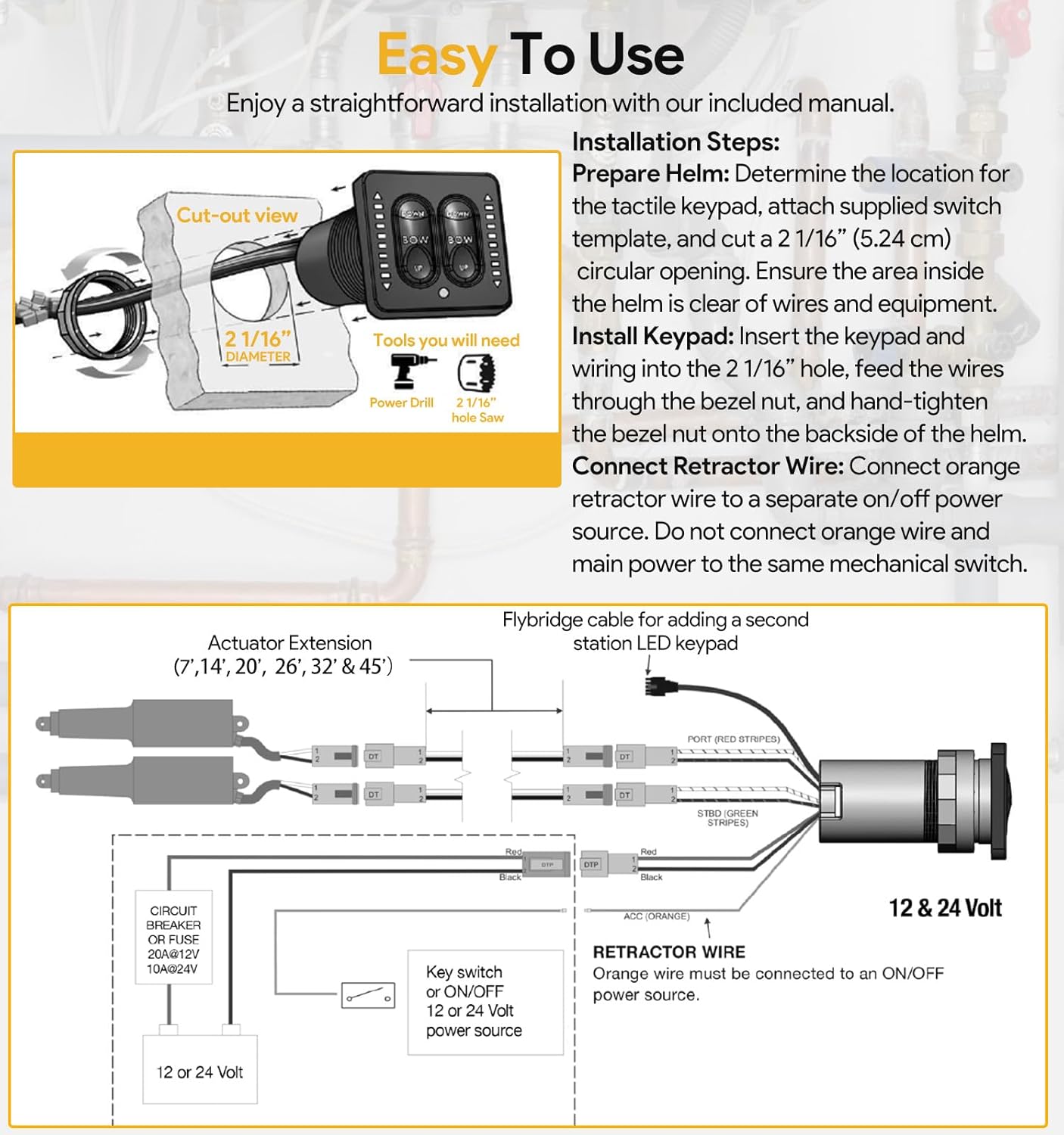

• 【Easy Plug-and-Play Installation】 Install in minutes with basic tools. Requires 2 1/16" hole saw for mounting. Includes 36" power pigtail and 30" harness from switch bezel. Clear instructions make wiring and setup quick and hassle-free.
• 【Compact, Marine-Ready Design】 Low-profile keypad measures 2.75" x 2.75", fits 2 1/16" cutout, and needs 4.08" clearance. Sealed, corrosion-resistant design built to withstand harsh marine environments.
• 【Comprehensive Specifications】 Includes a 30" (76.2 cm) wiring harness from the switch bezel, a 36" power pigtail, a keypad dimension of 2.75" x 2.75" with a 2 1/16" hole cut-out, and requires 4.08" clearance, all designed within a sleek, low-profile form factor.
• 【100% Satisfaction Guarantee】 Your satisfaction is our priority. We strive to give our customers excellent service. All Sixcow products support 30-Day money-back guarantee, 12-Month warranty for quality-related issues. Simply return it for your warranty.
